Car monitor for rear view camera (9″ NEW) (monitor-9)

Description

Car monitor 9" with two video inputs, remote control and automatic switching to the rear view camera

The 9-inch car monitor is a practical solution for connecting a rearview camera, intercom or video surveillance system. The screen with a resolution of 1024×600 pixels and an aspect ratio of 16:9 provides a clear and vivid image. It supports PAL and NTSC standards, as well as AVI, MPEG-1, MPEG-2 and MPEG-4 formats. Two video inputs allow you to connect two signal sources simultaneously. The device is controlled by the buttons below the screen or by the remote control. The device operates stably in the temperature range from -30°C to +60°C and humidity up to 95%. The device is powered by the on-board 12 V network with minimal power consumption.

⚠ Important: when connected to 12V, the screen will be black until the video signal from the camera is supplied. For automatic switching to the rear view camera, you need to supply 12V to the signal wire reverse. It is recommended to connect cameras and monitors through a filter (relay) for stable operation.

Advantages:

• Two video inputs - connect multiple devices at the same time (for example, a rearview camera and GPS);

• Automatic shifting when reverse gear is engaged - safe and convenient parking;

• Remote control - easy operation, image adjustment and mode switching;

• Clear and vivid image - 1024×600 pixel resolution with rich colors;

• PAL/NTSC compatible - a universal monitor for most cameras;

• Elegant and compact design - easily fits into the car interior, can be installed on the dashboard or windshield;

• Operation in a wide range of temperatures and humidity - reliability in all conditions;

• Low power consumption - minimal load on the battery;

• Easy to install - connect to standard wiring without additional adapters.

Characteristics:

• Operating voltage: 12V;

• LCD screen resolution: 1024×600 (RGB);

• Screen diagonal: 9" (16:9);

• Video systems: NTSC / PAL;

• Video inputs: AV1, AV2;

• Dimensions without frame: 230×155×27 mm;

• Dimensions with frame: 250×175×32 mm;

• Weight: 890 g;

• Adjustments: contrast, brightness, volume, language;

• Automatically turns on when a video signal is input;

• Bracket with double-sided tape;

• Frame for wall mounting;

• Can be installed in any convenient place.

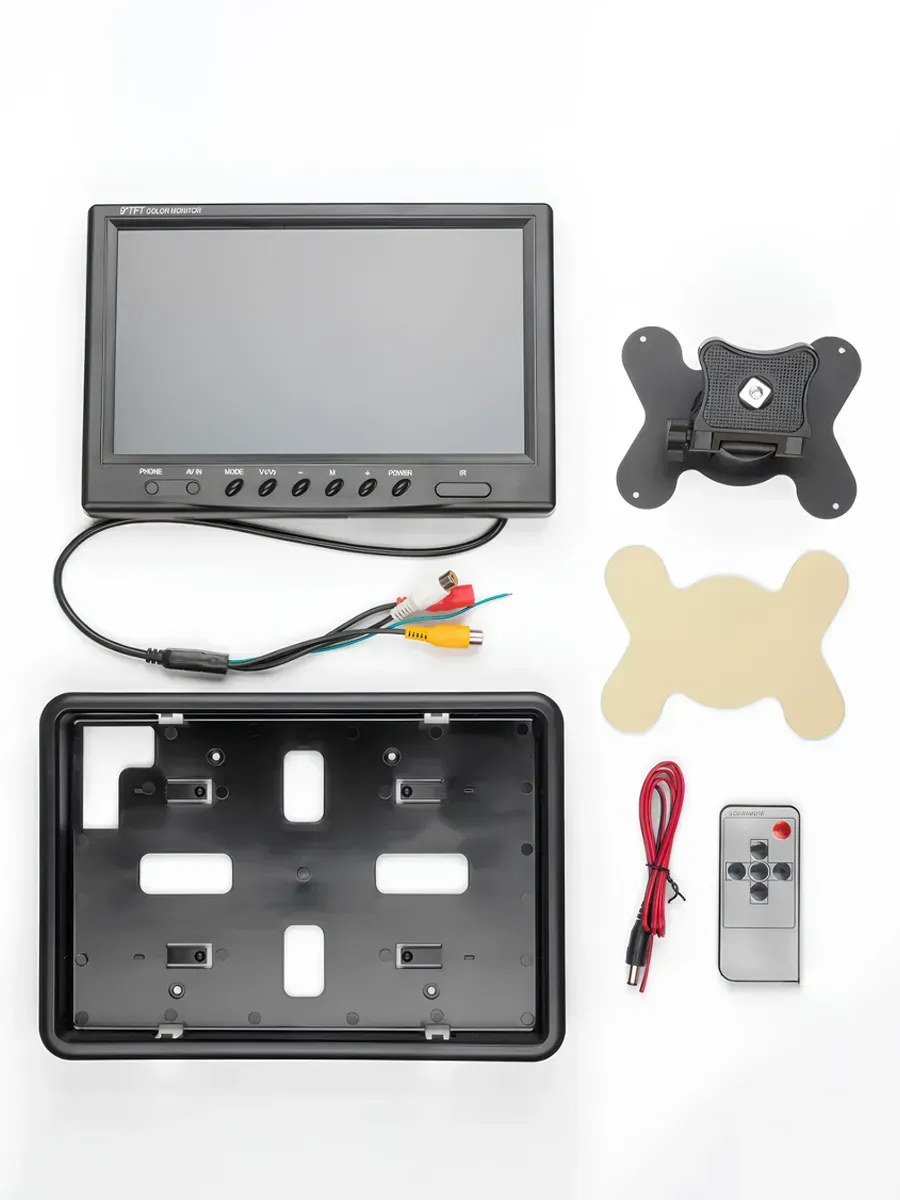

Package contents:

• Car monitor 9";

• Bracket;

• Frame for wall mounting;

• Remote control;

• Wires for connection;

• Packaging.
